PRODUCT DATA SHEET: SMART SENTINEL BOLLARD
Integrated Architectural Illumination & Security System
The Smart Sentinel Bollard is a high-performance architectural lighting solution that integrates advanced AI-driven surveillance into a single, cohesive form factor. Designed for "Security-by-Design" applications, it eliminates visual clutter while maximizing site safety.
1-Integration Highlights
• Integrated Design: Seamlessly embeds a high-definition dome camera within the bollard head, providing eye-level security without traditional "conspicuous" mounting.
• Optic Technology: Internal stacked louvers direct light downward to prevent sky-glow and glare while providing a uniform \bm{360^\circ} pathway wash.
• Durability: Engineered for harsh environments using the Mean Well XLG series driver, providing surge protection and high thermal resistance.
• Privacy Aware: The camera is positioned to monitor activity at human scale, ideal for entry points, walkways, and residential areas.
3. Application Use-Cases
• Public Spaces: Urban plazas, parks, and smart-city transit hubs.
• Residential Communities: Perimeter security and common-area monitoring for luxury housing developments.
• Commercial Campus: Discreet safety for corporate headquarters and hospital grounds.
4. Visual Summary

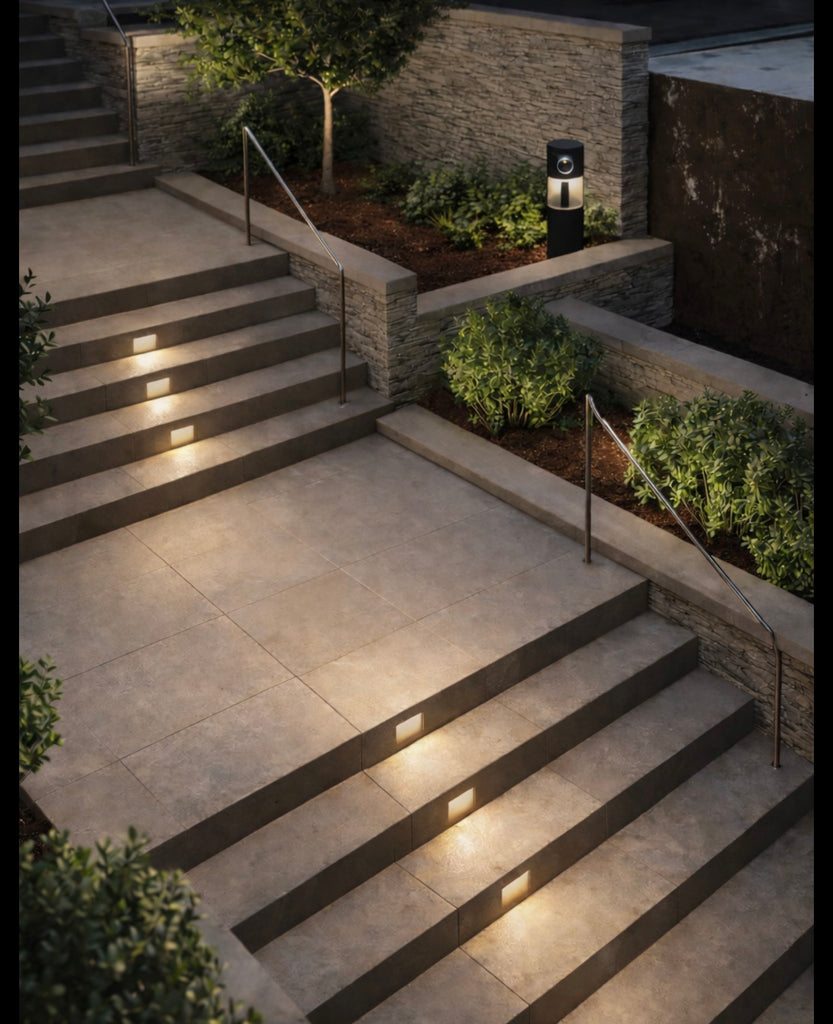

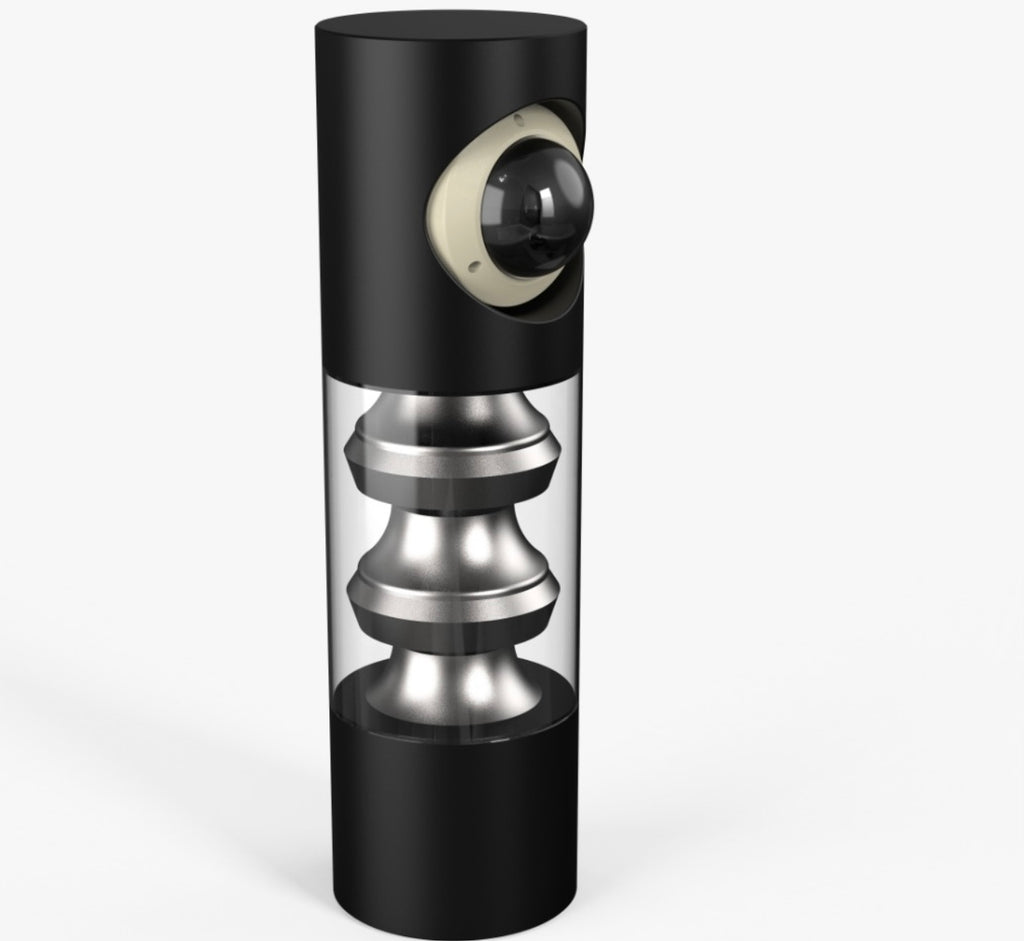

• Ref. Image 1 & 3: Shows the dual-purpose nature of the bollard—illuminating the path while recording activity.
• Ref. Image 2: Confirms the use of top-tier Mean Well XLG-50-A components, ensuring global electrical compliance (CE, CCC, TUV, UKCA).
2. Core System Specifications
Categor
Luminail
re
Imaging
Electric al
Mechani cal
Integrated Camera Lighting Design
Componen t
Light
Source
Luminous
Flux
Color Temp
Rated Life
Camera
Type
Night
Vision
Al
Analytics
Power
Supply
Input
Voltage
Rated
Power
Materials
Ratings
Technical Detail
Integrated LED Array with Precision Internal Louvers
1,560 lm (Delivered)
3000K (Warm White)
> 50,000 Hours (L70)
4MP Wide-Angle
Surveillance Camera
Integrated IR (Infrared)
LED Array for zero-light monitoring
Real-time Person detection and Flow
Analysis
Mean Well XLG-50-A LED
Driver
Universal
100 - -240V AC,
50/60Hz
50W (System Total)
Marine-grade Die-cast
Aluminum; UV-stabilized
Clear Diffuser
IP67 (Dust & Water Tight);
