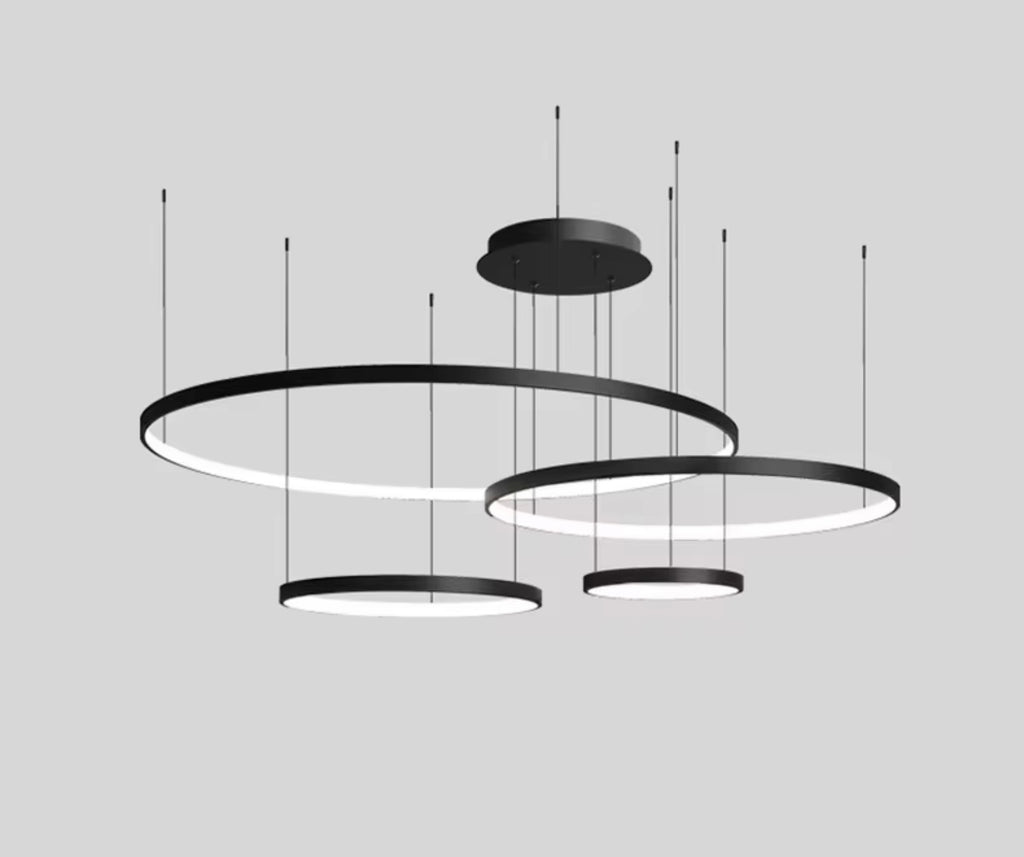

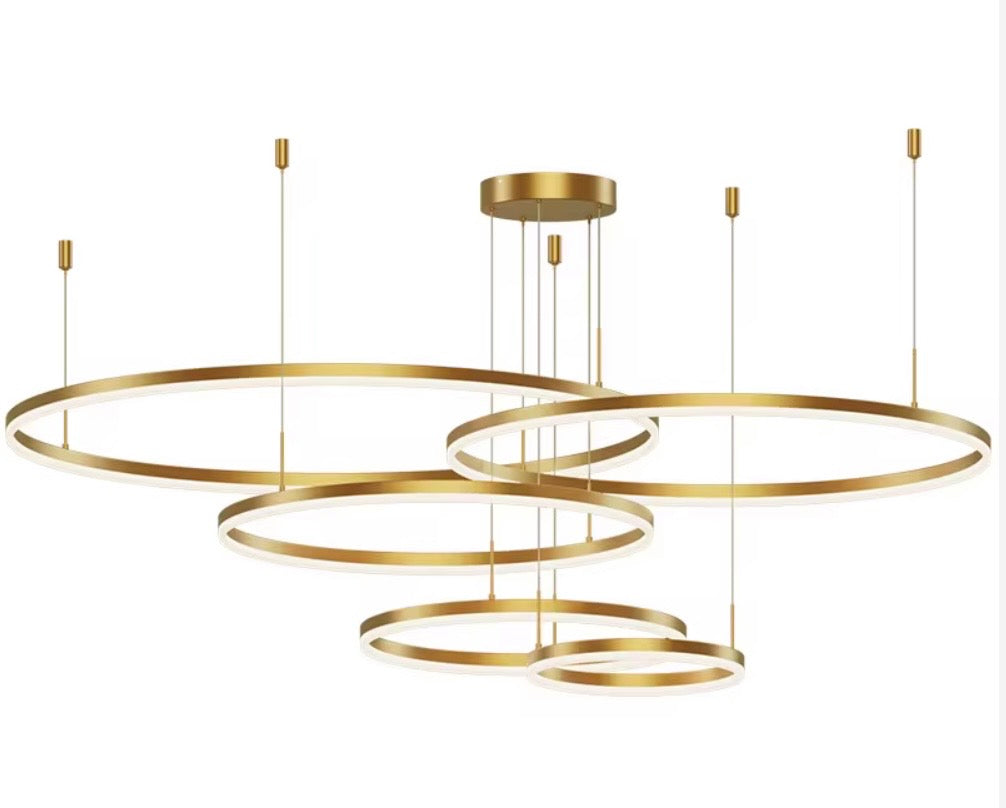

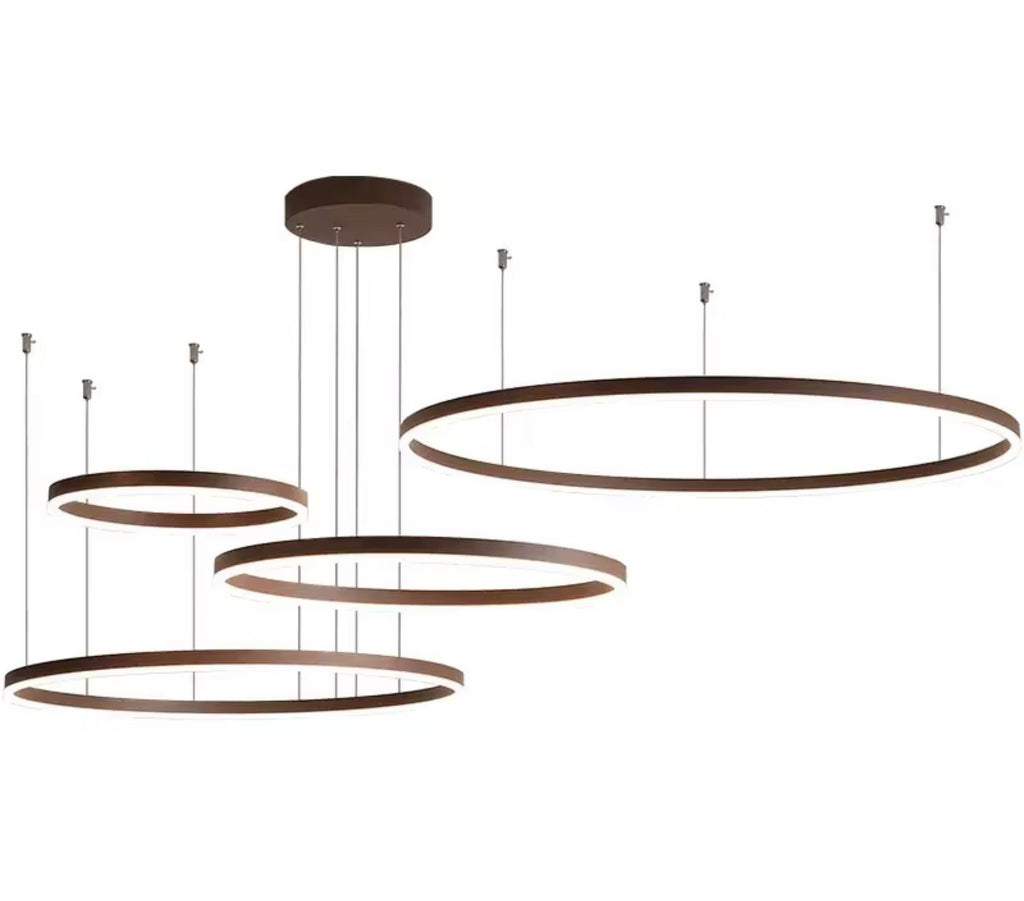

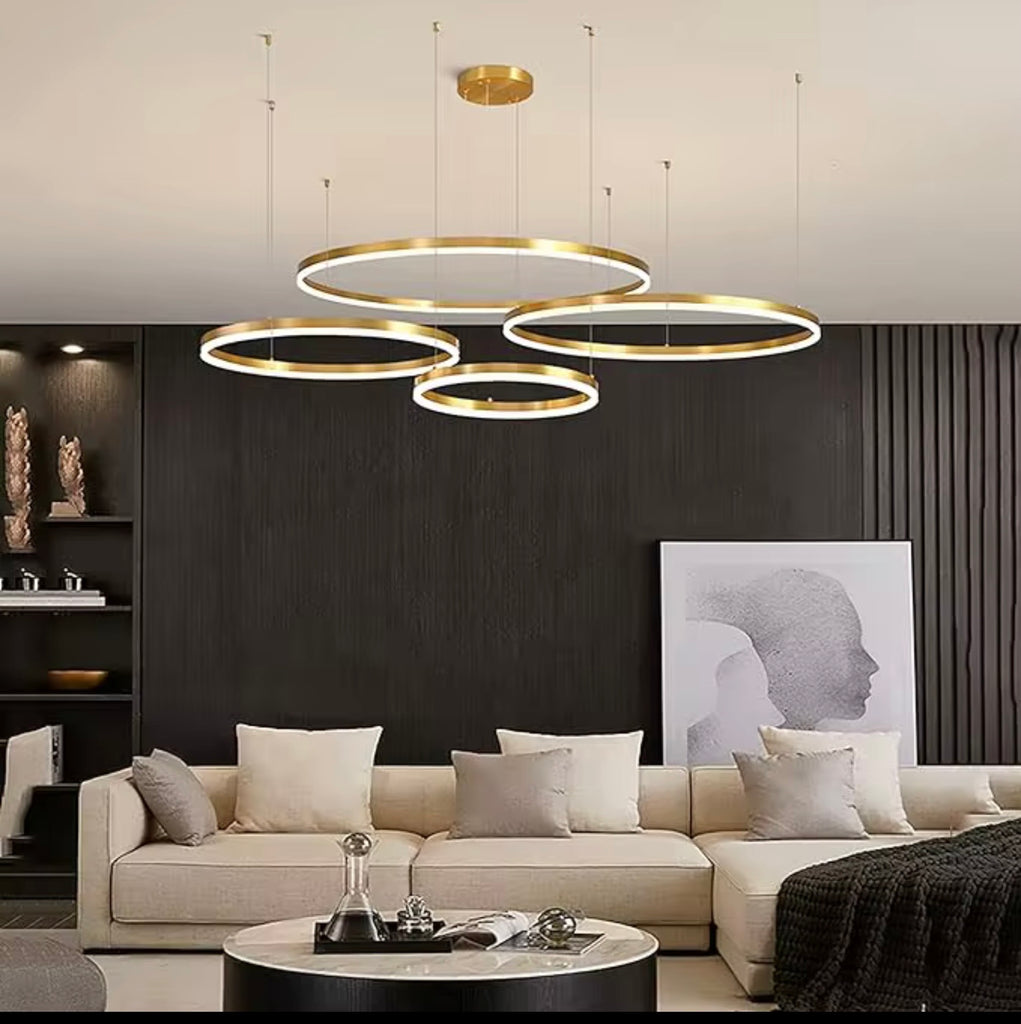

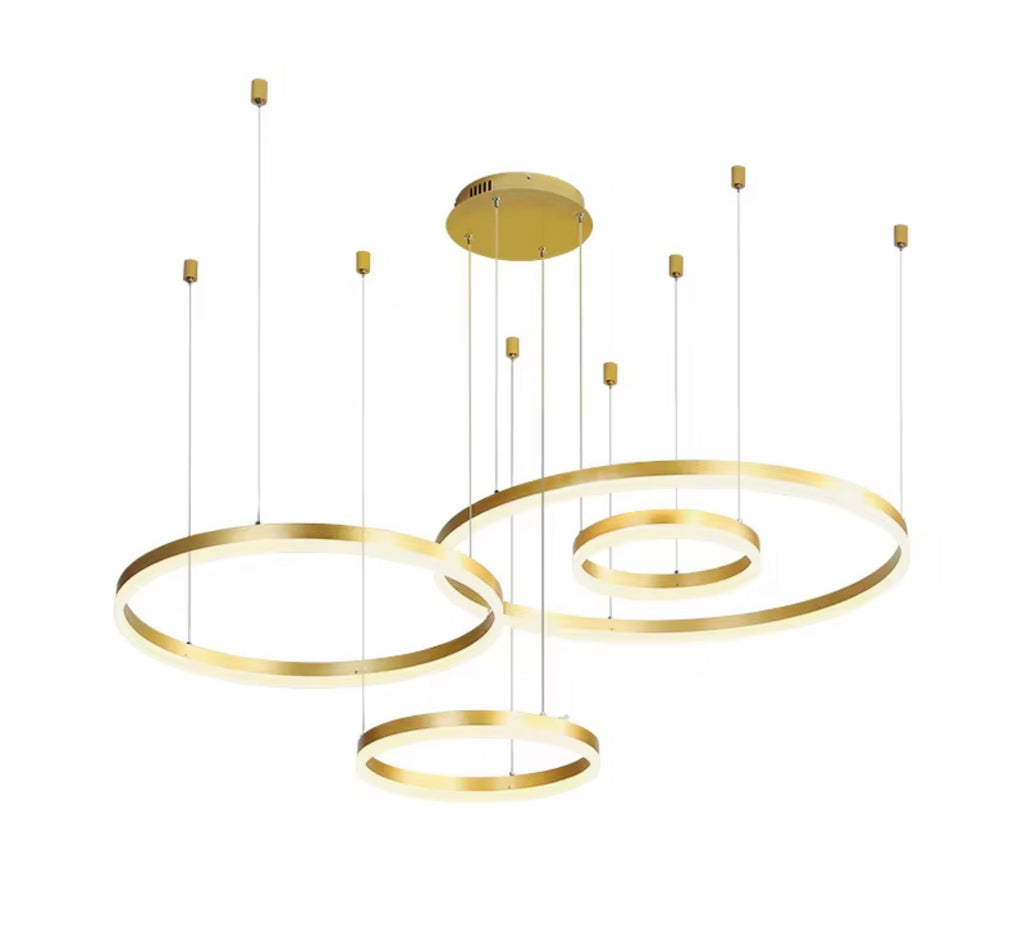

5-Ring Modern LED Pendant Chandelier
Product Overview
This contemporary 5-ring LED pendant chandelier combines a modern minimalist aesthetic with high-performance, energy-efficient illumination. Featuring adjustable suspension cables, selectable color temperatures, and smooth dimming capabilities, it is ideal for luxury residential and commercial interiors.

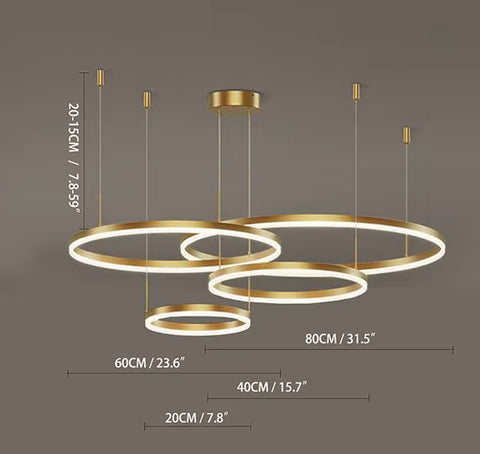

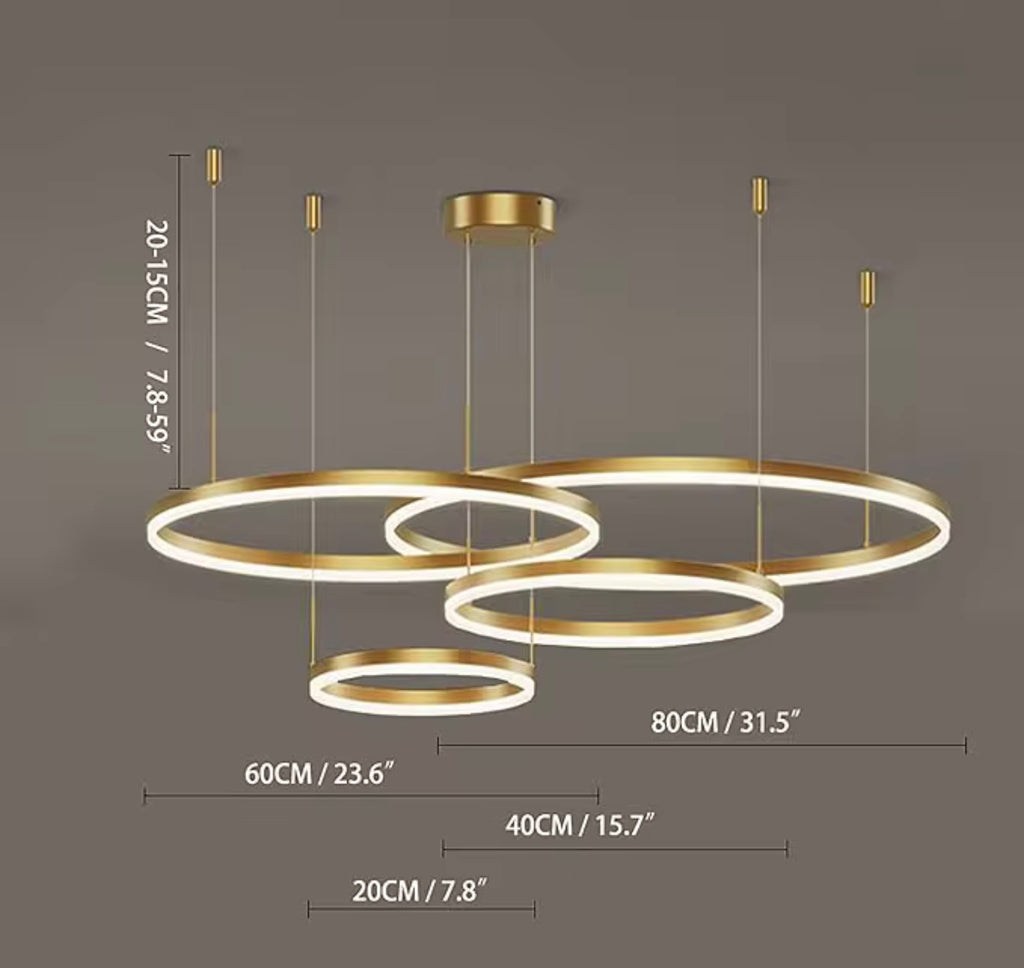

Dimensions
- Five (5) circular LED rings:
- 11.8 in (300 mm)
- 15.7 in (400 mm)
- 23.6 in (600 mm)
- 31.4 in (800 mm)
- 39.3 in (1000 mm)
- Ceiling canopy diameter: 11.8 in (300 mm)
- Adjustable suspension cable length: Up to 59 in (1500 mm)
Electrical Specifications
- Power Supply: Hardwired
- Input Voltage: AC 85–265V
- Frequency: 50/60 Hz
- Power Consumption: 120W
- Luminous Output: 9,600 lumens
- Color Rendering Index (CRI): ≥90
Note: Junction box and power plug are not included.
Lighting Performance
Adjustable Color Temperature
- 3000K – Warm White
- 4500K – Neutral White
- 6000K – Cool White
Dimming
- Fully dimmable from 10% to 100%
- Adjustable using the included remote control
Control Options
Standard Wall Switch
The fixture supports standard on/off wall switches. Each time the switch is cycled, the color temperature changes in the following sequence:
- 6000K – Cool White
- 3000K – Warm White
- 4500K – Neutral White
Note: A standard wall switch does not provide brightness control.
Remote Control
The included remote control allows:
- Color temperature adjustment
- Brightness adjustment (10–100%)
- Memory function
- On/Off control
Not compatible with conventional wall dimmer switches.
Memory Function
After selecting the desired brightness and color temperature, leave the fixture on for at least 10 seconds to activate the memory function. The fixture will recall the last saved settings when powered on using the remote control.
Materials & Construction
- Extruded aluminum frame
- Premium acrylic diffuser
- High-output integrated LED light source
- Heavy-duty metal ceiling canopy
- Adjustable metal suspension cables
- High-quality LED driver
Light Source
- Integrated high-efficiency LED modules
- Flicker-free operation
- Eye-comfort lighting
- Rated service life: Up to 50,000 hours
Mounting
- Ceiling-mounted
- Adjustable suspension system allows multiple ring configurations for a customized installation.
Note: Suspension cables may appear slightly curved upon unpacking due to packaging. They will naturally straighten after installation.
Design Flexibility

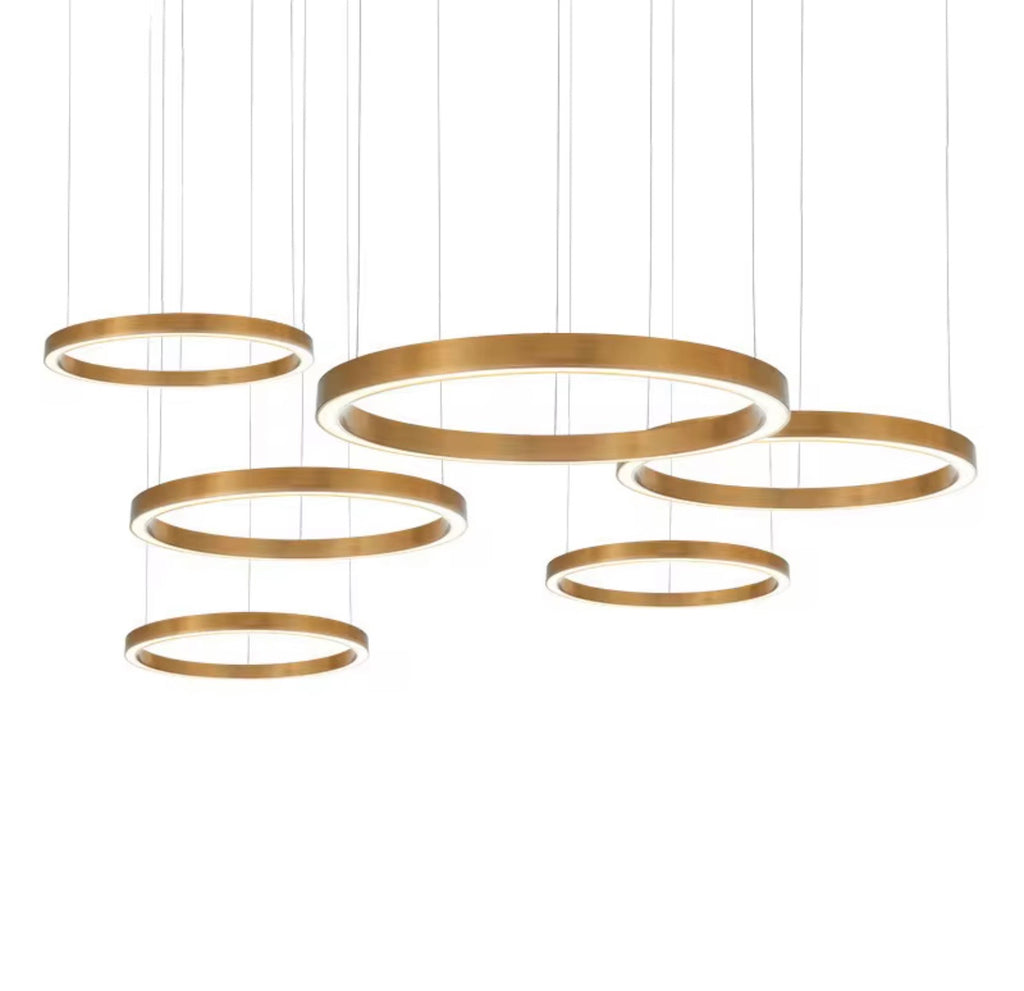

Each LED ring is individually height-adjustable, allowing installers to create unique sculptural arrangements to complement the surrounding architecture.

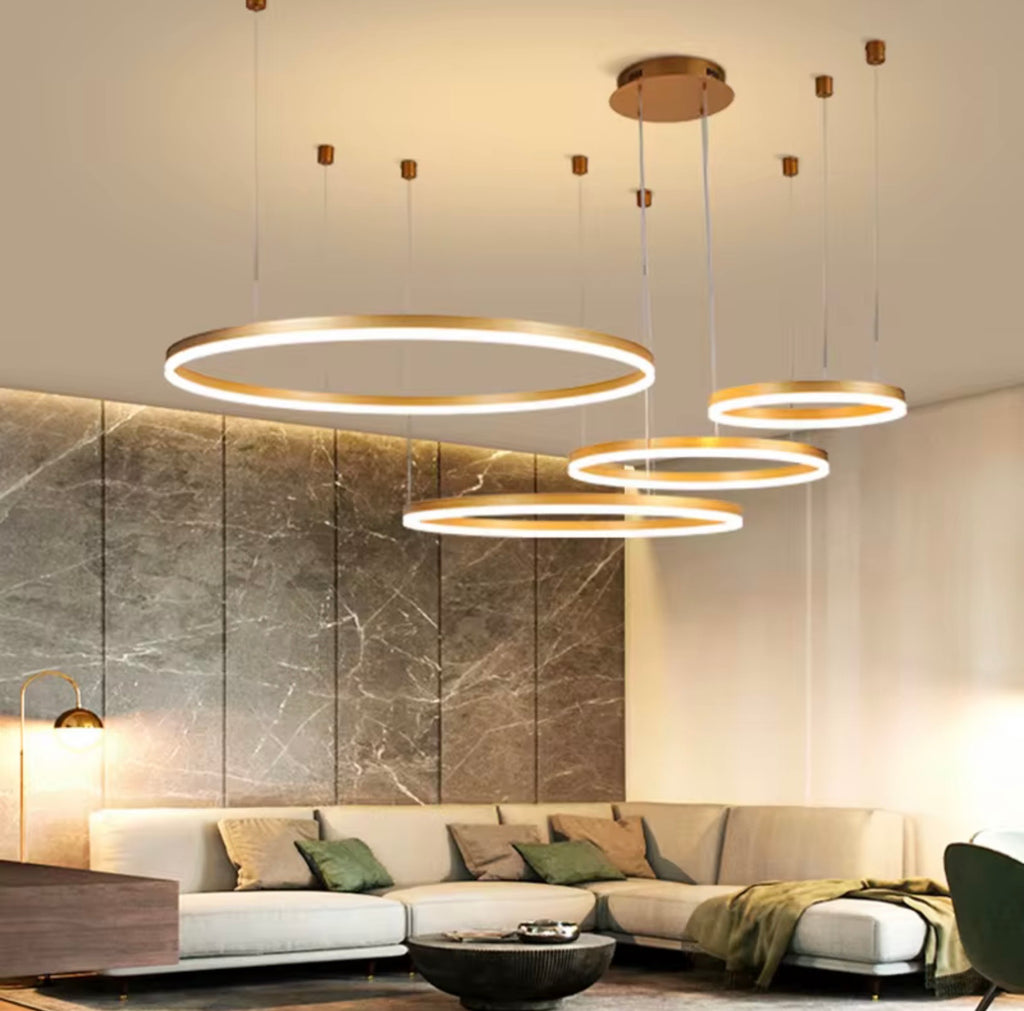

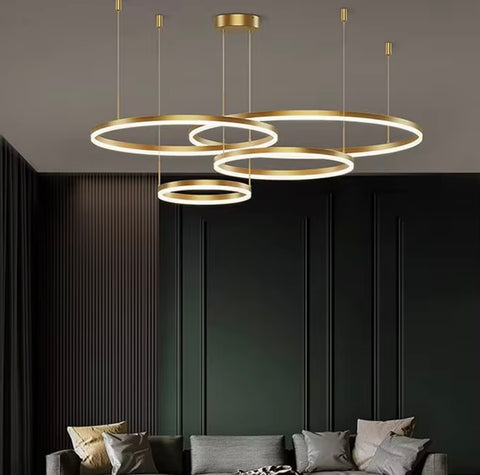

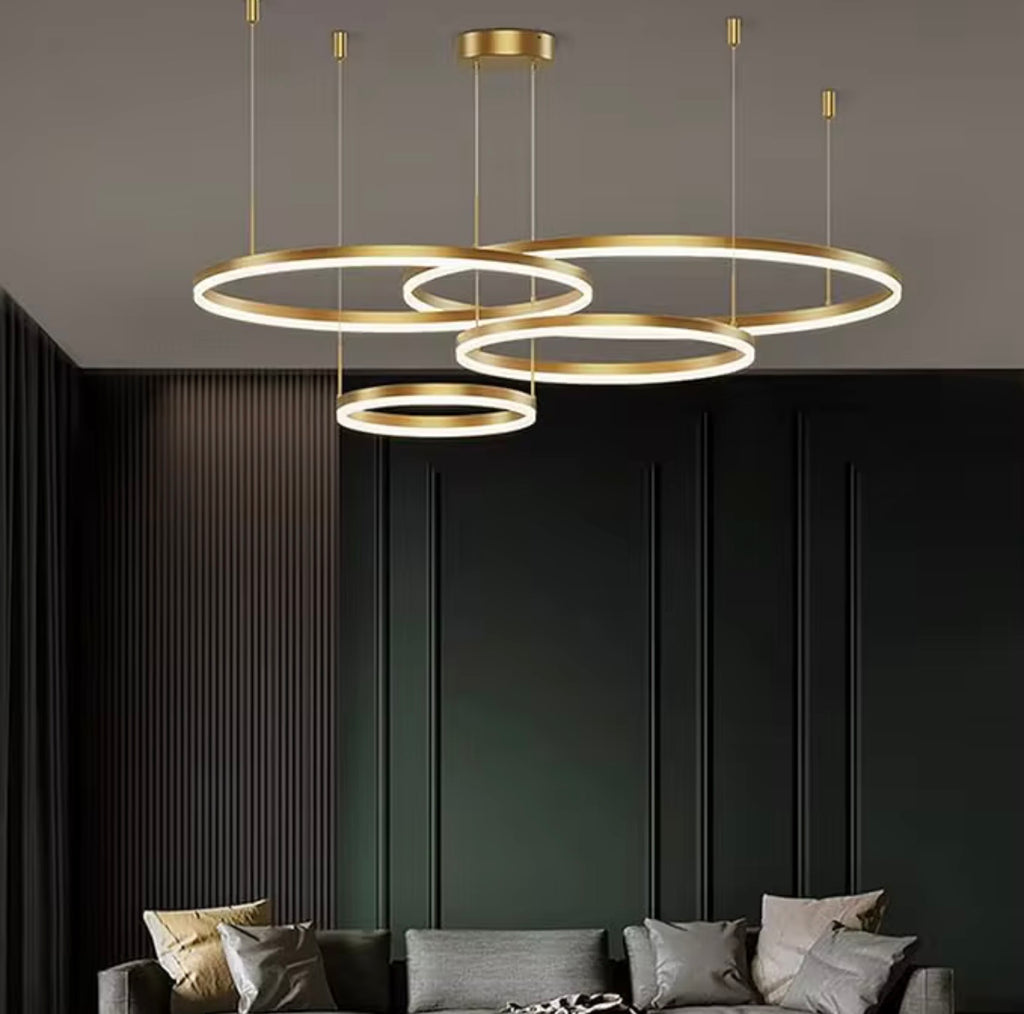

Recommended Applications
Suitable for:
- Living Rooms
- Dining Rooms
- Kitchen Islands
- Foyers
- Entryways
- Hallways
- Bedrooms
- Home Offices
- Bars & Lounges
- Hospitality Spaces
- Luxury Residential Interiors
Package Contents
- (1) LED 5-Ring Pendant Chandelier
- (1) Remote Control (batteries not included)
- (1) Installation Hardware Kit
- (1) User Manual
Remote Pairing Instructions
- Turn the fixture on.
- Within five (5) seconds, press the SETUP button twice on the remote.
- The fixture will flash twice to confirm successful pairing.
- If pairing is unsuccessful, switch the power off and repeat the procedure.
Installation Overview
- Remove the mounting plate from the ceiling canopy.
- Secure the mounting plate to the electrical junction box.
- Connect wiring:
- Brown – Live (L)
- Blue – Neutral (N)
- Yellow/Green – Ground (E)
- Attach the canopy to the mounting plate.
- Adjust each suspension cable to achieve the desired ring arrangement.
Safety Notes
- Professional installation by a licensed electrician is recommended.
- Disconnect electrical power before installation or servicing.
- Verify fixture dimensions prior to ordering.
- Product dimensions may vary by ±1–2 cm due to manufacturing tolerances.
- Actual product color may vary slightly due to monitor settings and ambient lighting conditions.
