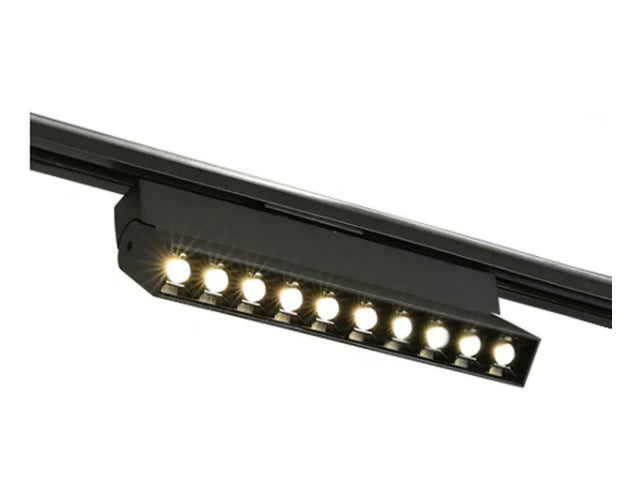

This 20W LED track luminaire delivers focused, high-quality illumination for artwork, architectural features, retail displays, and other accent-lighting applications. Its 30° narrow-flood beam provides controlled light distribution, while the 90+ CRI renders colors and finishes accurately.
Product Specifications
- Power: 20W
- Light source: Integrated LED

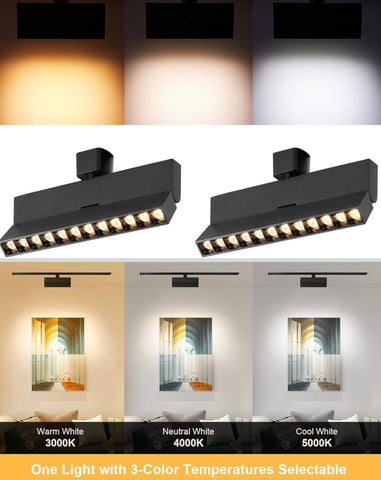

- Color temperature: 3000K warm white
- Color rendering: 90+ CRI
- Beam angle: 30° narrow flood
- Dimming: Dimmable
- Track compatibility: H-type single-circuit track
- Finish: Painted black

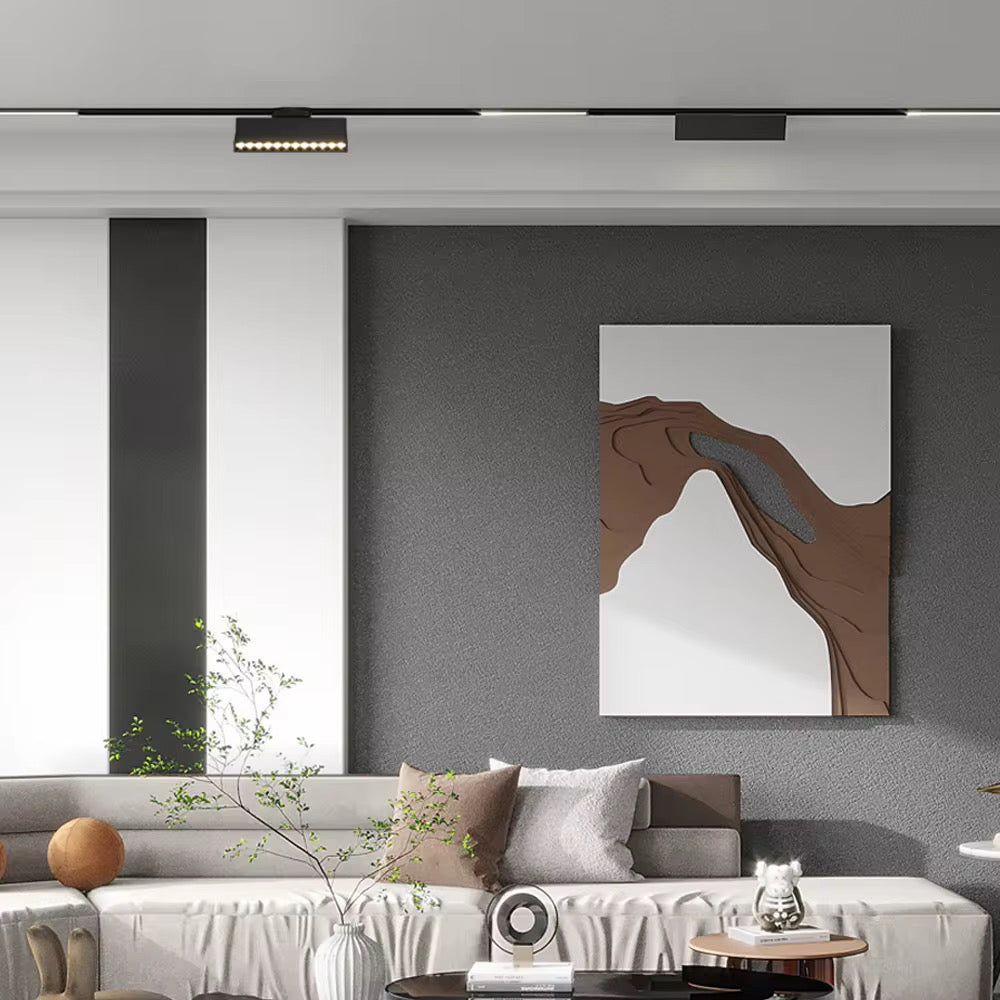

- Applications: Wall art, displays, retail merchandise, and architectural accents
- Recommended location: Indoor, dry locations
Model: UUI-3490Q

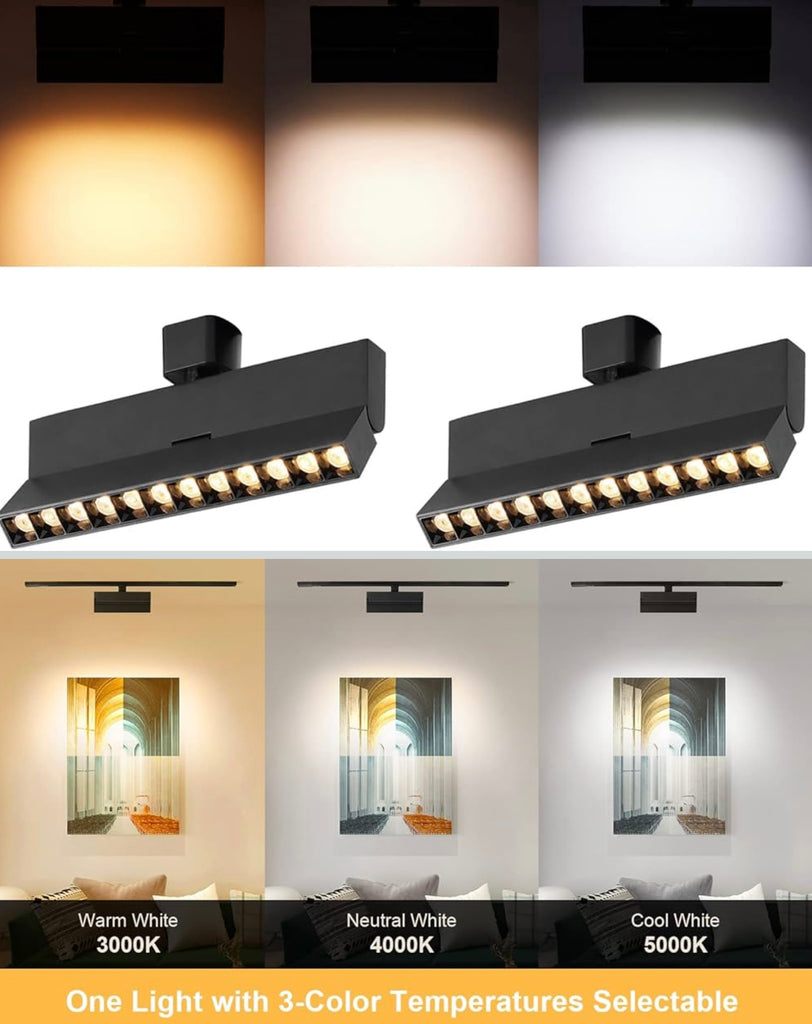

Fixture Type: LED Track Head (Non-removable light source)
Application: Indoor / Dry locations only
Mounting: Track-mounted (H-Type single-circuit)
Finish: Black, painted
Housing / Shade: Metal housing, plastic shade
Electrical
- Input Voltage: 120V AC
- Wattage: 20W
- Control: On/Off + Remote Control
- Dimming: Dimmable (verify TRIAC compatibility with specified dimmer)
Photometrics
- Light Source: LED
- CCT: 3000K (Warm White)
- CRI: 90+ (confirm manufacturer data)
- Lumen Output: 1200 lm
- Efficacy: 60 lm/W
- Beam: 30° (Narrow flood), adjustable aiming
- Instant On: Yes
Compliance / Ratings
- Location Rating: Dry
- Water Resistance: Not rated
- Shatter Resistant: Yes
Dimensions & Weight

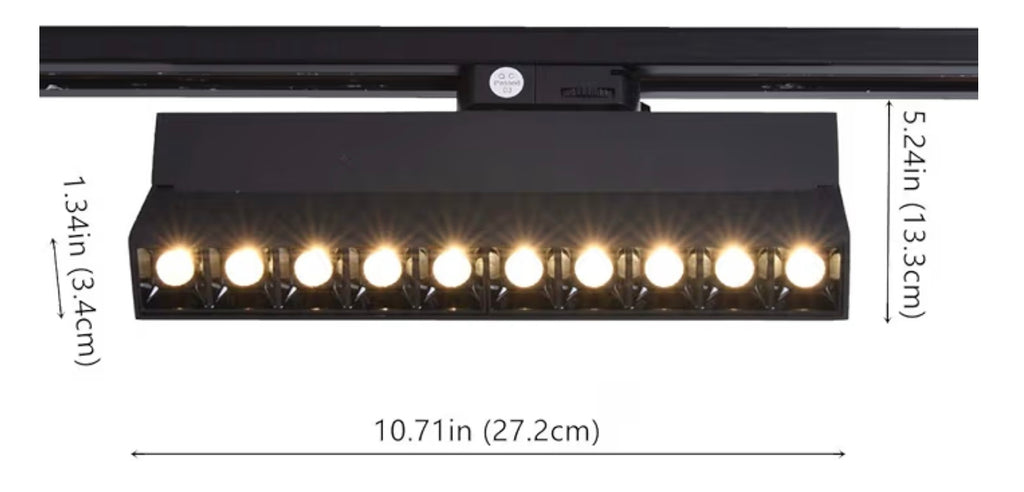

- Size (L × W × H): 10.71” × 5.24” × 1.34”
- Weight: 3.94 kg
Packaging

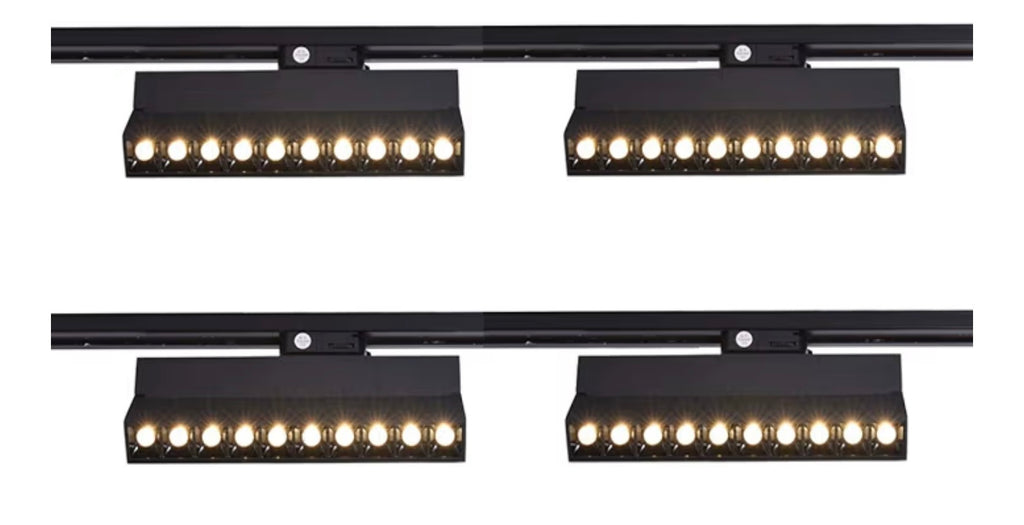

- Pack Quantity: 4 fixtures
- Included Components: Lamp/Bulb
- 1 -4ft Track
